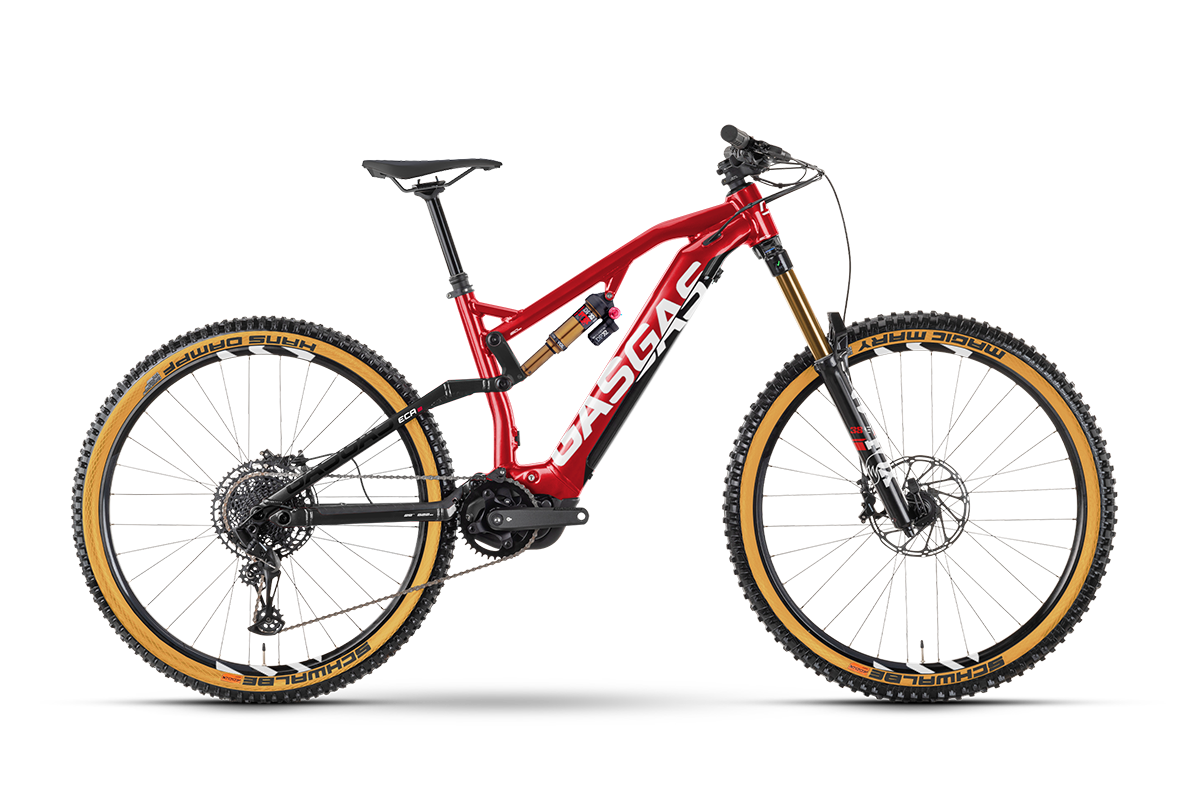

ECA 3

Choose Colour

Frame shape

Frame

Wheels

29"/622mm

Frame Geometries

Geometries ECA 3

Size

A Top Tube Length B Seat Tube Length C Seat Tube Angle D Head Tube Length E Steering Angle F Chain Stay Length G Wheel Base H Standover Height I BB-Drop J Stack K Reach L Stem Length M Crank Length

Size

A Top Tube Length B Seat Tube Length C Seat Tube Angle D Head Tube Length E Steering Angle F Chain Stay Length G Wheel Base H Standover Height I BB-Drop J Stack K Reach L Stem Length M Crank Length

Size

A Top Tube Length B Seat Tube Length C Seat Tube Angle D Head Tube Length E Steering Angle F Chain Stay Length G Wheel Base H Standover Height I BB-Drop J Stack K Reach L Stem Length M Crank Length

Size

A Top Tube Length B Seat Tube Length C Seat Tube Angle D Head Tube Length E Steering Angle F Chain Stay Length G Wheel Base H Standover Height I BB-Drop J Stack K Reach L Stem Length M Crank Length

506 mm 410 mm 72 ° 100 mm 64 ° 460 mm 1241 mm - 20 mm 620 mm 445 mm 50 mm 160 mm

530 mm 440 mm 72 ° 105 mm 64 ° 460 mm 1258 mm - 20 mm 625 mm 460 mm 50 mm 160 mm

561 mm 460 mm 72 ° 110 mm 64 ° 460 mm 1285 mm - 20 mm 629 mm 485 mm 50 mm 160 mm

645 mm 490 mm 72 ° 115 mm 64 ° 460 mm 1313 mm - 20 mm 634 mm 510 mm 50 mm 160 mm

Unisex Frame

Bring some heat to the Enduro scene!

Base Price

74 990,00 SEK 77 990,00 SEK

Save 3000 SEK!

On Sale until 31.07.24

Calculate size

Specifications

Wheel size 29"/622mm
Frame 29", Alloy 6061, Integrated battery, Boost, 160 mm
Fork FOX Float 38 Factory, Grip 2, E-Optimized, Air, 170 mm, tapered
Shock FOX Float X Factory, Air, 230x65 mm
Motor Yamaha PW-X3, 250 W, 85 Nm
Battery Simplo, 720 Wh, 36 V
Display Yamaha Interface X, LED-Display, ANT, Bluetooth
Rear derailleur SRAM GX Eagle, 12-S
Front brake SRAM Code R, 4-piston, Hydraulic disc brake
Crank arm GASGAS EC40, Aluminum forged, ISIS

Frame 29", Alloy 6061, Integrated battery, Boost, 160 mm
Fork FOX Float 38 Factory, Grip 2, E-Optimized, Air, 170 mm, tapered
Shock FOX Float X Factory, Air, 230x65 mm
Motor Yamaha PW-X3, 250 W, 85 Nm
Battery Simplo, 720 Wh, 36 V
Charger Simplo rapid charger, 4 A
Mode Switch Yamaha X
Display Yamaha Interface X, LED-Display, ANT, Bluetooth
Front brake SRAM Code R, 4-piston, Hydraulic disc brake
Front brake rotor SRAM Centerline, 200 mm, Center lock
Rear brake SRAM Code R, 4-piston, Hydraulic disc brake
Rear brake rotor SRAM Centerline, 200 mm, Center lock
Rear derailleur SRAM GX Eagle, 12-S
Cassette SRAM PG-1230, 11-50 T
Chain SRAM GX Eagle
Chainring SRAM X-Sync Eagle, 38 T
Crank arm GASGAS EC40, Aluminum forged, ISIS
Shift lever SRAM GX Eagle, Single Click
Wheelset NEWMEN Evolution A.30, Tubeless ready, Center lock, 15x110/12x148 mm, thru axle
Tire Schwalbe Magic Mary, Evolution, 62-622, 29, 2.4, Tubeless ready
Rear tire Schwalbe Hans Dampf, Evolution, 60-622, 29 x 2.35, Tubeless ready
Stem GASGAS 35, 0 °, Ahead
Headset FSA Orbit ZS56/ZS56
Handlebar GASGAS Riser 35 mm, 780 mm, Sweep: 9 °, Rise: 20 mm
Grips GASGAS MTB, Lock-on grips
Saddle GASGAS MTB
Seat post GASGAS, 34.9 mm, Dropper post
Pedals GASGAS, aluminum
Chain guide ISCG-05
Permissible total weight 130 kg
Trailer approval No trailer approval
STVZO konform STVZO No

Due to problems in supply chain, the bike can be delivered with modifications.
